Analogue and Digital Motor Control Teaching Set
This combined teaching set provides a complete solution to teaching analogue and digital motor control.

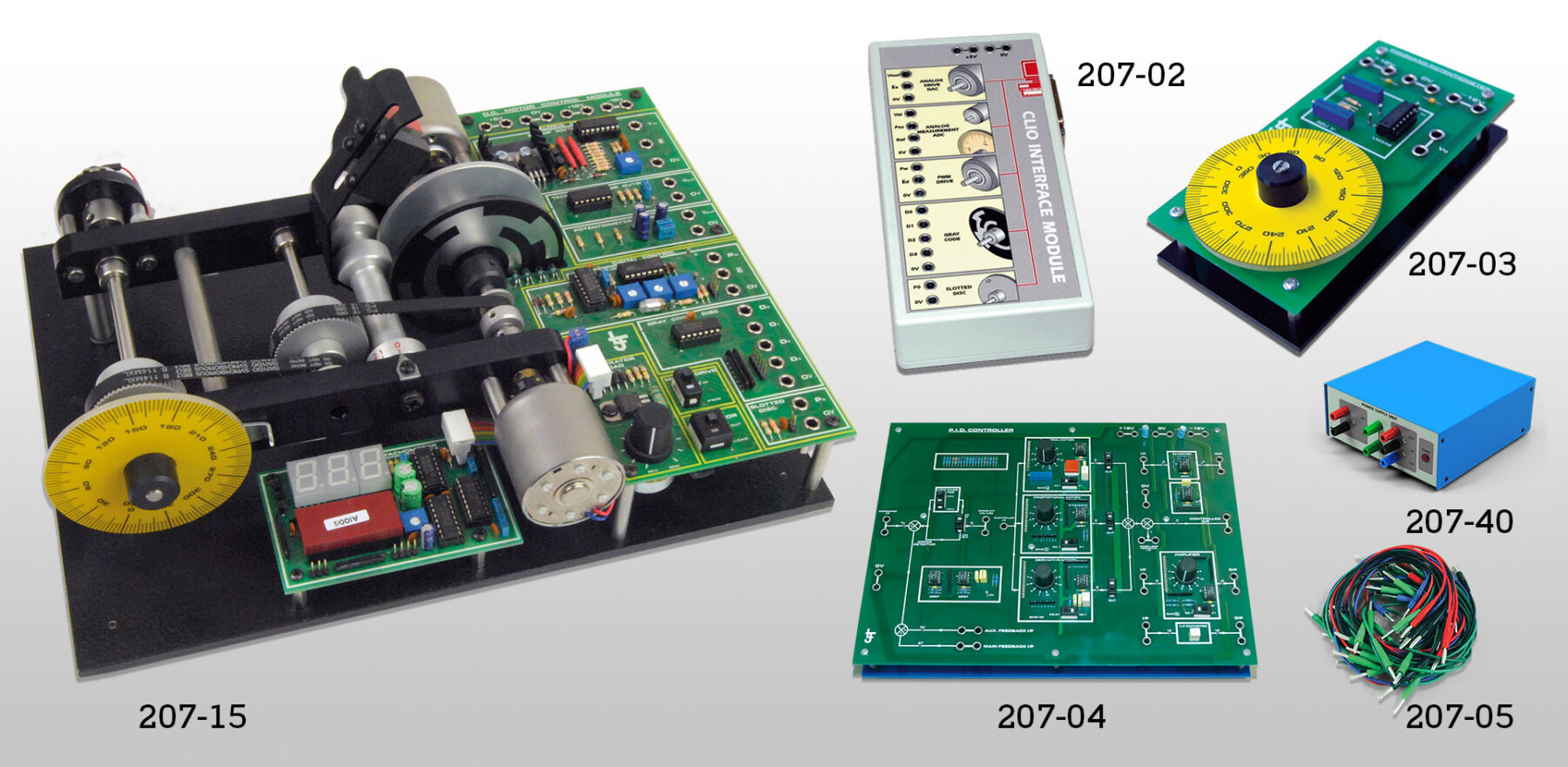

The Analogue and Digital Motor Control Teaching Set (207-00) includes a DC motor control module, command potentiometer, PID controller module, input/output interface module, and curriculum manuals in pdf format. A power supply unit and connection leads are also provided.
Typical activities include:
- Describe the Main Elements of a PID Controller
- Investigate the data capture features of a digital storage oscilloscope
- Conduct simple step, ramp, and frequency response tests
- Demonstrate Proportional Speed control
- Outline the reasons for adding velocity feedback
- Demonstrate the change in following error when transient velocity feedback replaces velocity feedback
- Discuss the effects of noise when subjected to derivative action
- Demonstrate various combinations of PID control
