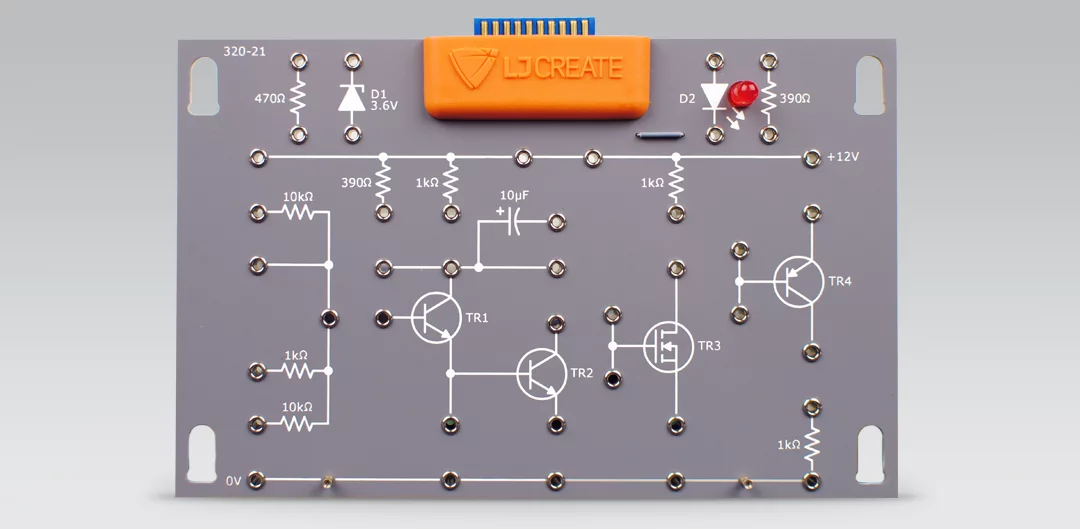

Diodes and Transistors Card

This practical resource allows students to investigate semiconductor diodes and transistors through a range of practical activities.

Practical activities based around the Diodes and Transistors Card (320-21) are available within the digital curriculum materials provided with our Electronics Study Trainer.

Practical tasks include the following :
  • Voltage Stabilization using a zener diode
  • PNP transistor switch
  • NPN transistor as a voltage amplifier
  • FET operation
  • Testing and fault-finding diode and transistor circuits

Please Note: This card requires access to an Electronics Study Trainer (320-00).

More Info

pdf-icon
320-21 | Diodes and Transistors Card

How to order

Product:
Diodes and Transistors Card
Code:
320-21

Please call LJ Create at
1-800-237-3482 or
email info@ljcreate.com.

A member of our staff will be happy to advise you with your order and provide you with further options where appropriate.
