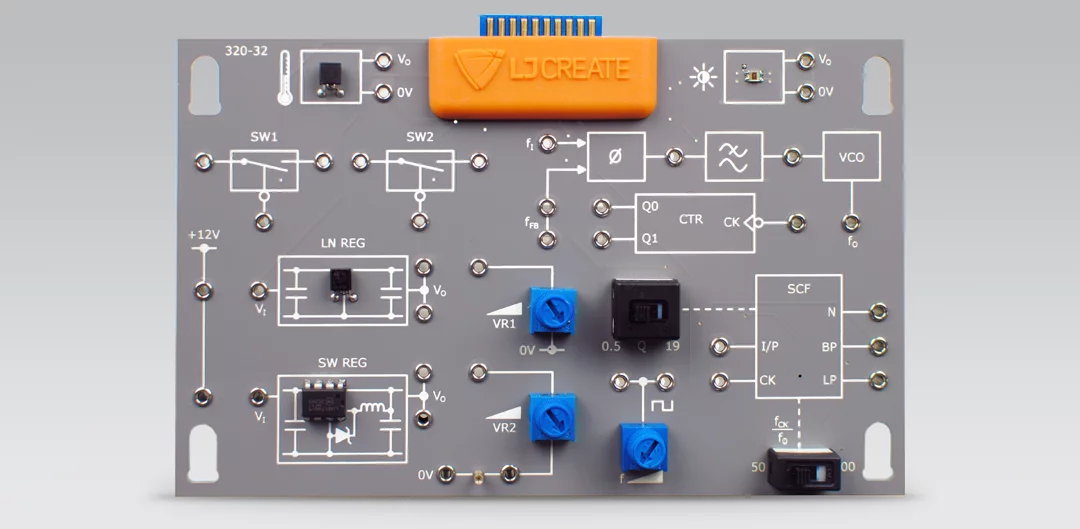

Analog Integrated Circuits Card

This practical resource allows students to investigate a variety of analog integrated circuits through a range of practical activities.

The practical activities based around the Analog Integrated Circuits Card (320-32) are available within the digital curriculum materials provided with our Electronics Study Trainer.

Practical tasks include the following:
  • Investigating IC sensors
  • Comparing linear and switch mode voltage regulators
  • Testing a switched capacitor filter
  • Investigating the operation of a phase locked loop
  • Using analog switches
  • Fault-finding analog integrated circuits

Please Note: This card requires access to an Electronics Study Trainer (320-00).

More Info

pdf-icon
320-32 | Analog Integrated Circuits Card

How to order

Product:
Analog Integrated Circuits Card
Code:
320-32

Please call LJ Create at
1-800-237-3482 or
email info@ljcreate.com.

A member of our staff will be happy to advise you with your order and provide you with further options where appropriate.
