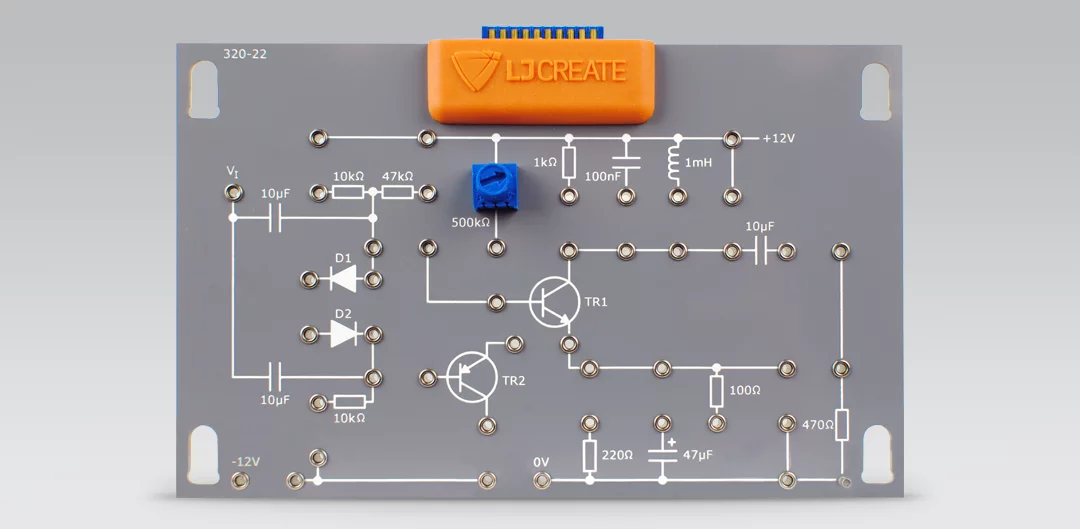

Transistor Amplifiers Card
This practical resource allows students to investigate transistor amplifier circuits through a range of activities.
The practical activities based around this Transistor Amplifiers Card (320-22) are available within the digital curriculum materials provided with our Electronics Study Trainer.
Practical tasks include the following:
- Build and test a Class A transistor amplifier
- Build and test a Class B transistor amplifier
- Investigate crossover distortion
- Build and test a Class AB transistor amplifier
- Build and test a Class C transistor amplifier
- Effects of feedback in a transistor amplifier circuit
- Fault-finding transistor amplifier circuits
Please Note: This card requires access to an Electronics Study Trainer (320-00).
More Info
How to order
Product:
Transistor Amplifiers Card
Code:
Please call LJ Create at
+44 (0)1603 748001 or
email info@ljcreate.co.uk.
A member of our staff will be happy to advise you with your order and provide you with further options where appropriate.
