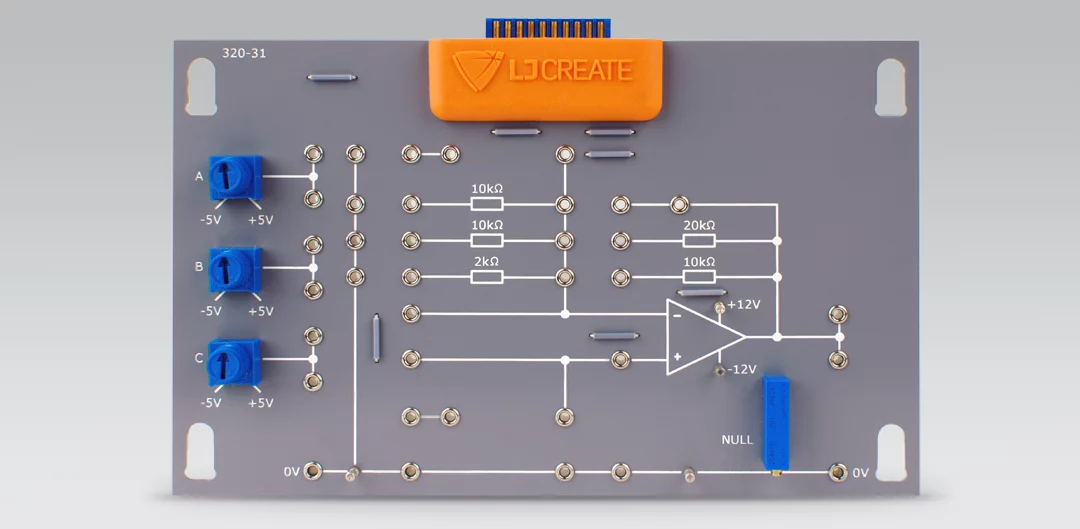

Operational Amplifiers Card
This practical resource allows students to investigate operational amplifier circuits through a range of activities.
The practical activities based around the Operational Amplifiers Card (320-31) are available within the digital curriculum materials provided with our Electronics Study Trainer.
Practical tasks include the following:
- Investigating a voltage comparator circuit
- Building and testing an inverting amplifier
- Building and testing a non-inverting amplifier
- High Frequency Performance of an Operational Amplifier
- Fault-finding operational amplifier circuits
Please Note: This card requires access to an Electronics Study Trainer (320-00).
More Info
How to order
Product:
Operational Amplifiers Card
Code:
Please call LJ Create at
+44 (0)1603 748001 or
email info@ljcreate.co.uk.
A member of our staff will be happy to advise you with your order and provide you with further options where appropriate.
