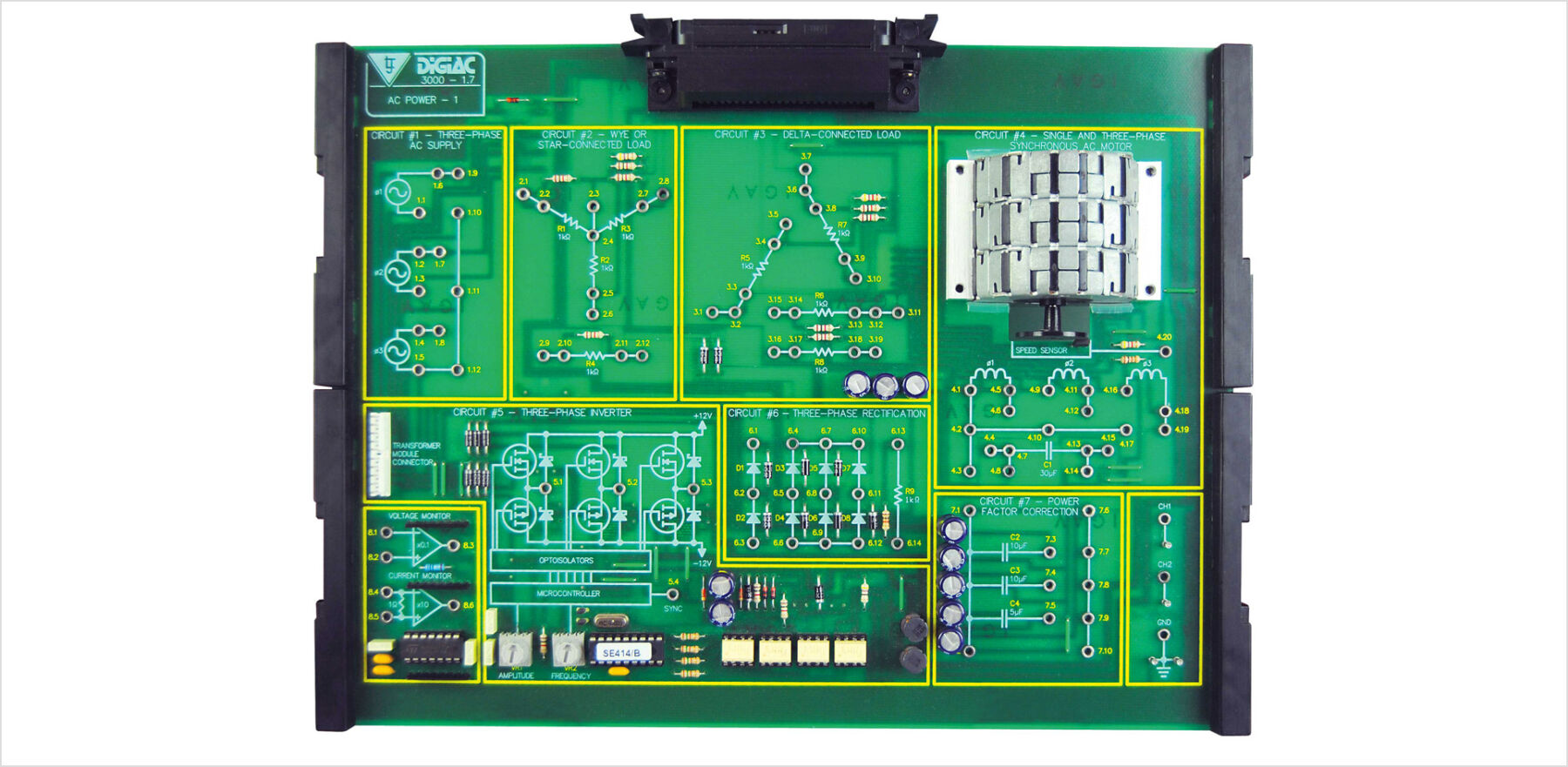

AC Power Study Module
This study module introduces students to the principles of AC power, three-phase AC circuits, and AC motors, including synchronous machines, through a wide range of practical activities.
The AC Power Study Module (305-17) is supplied with PDF manuals that provide theory materials, practical tasks, faultfinding activities, and technical information.
Typical activities include:
- Measure phase voltages, phase-phase voltages, and phase relationships of a three-phase supply
- Measure voltage and current, and calculate power in 6-wire and 3-wire connected three-phase circuits
- Diagnose faults in a dual-polarity three-phase supply
- Identify the principle of an inverter
- Faultfinding AC power circuits
Please Note: This resource requires access to an Advanced Electronics Experiment Platform (300-01).
More Info
How to order
Product:
AC Power Study Module
Code:
Please call LJ Create at
1-800-237-3482 or
email info@ljcreate.com.
A member of our staff will be happy to advise you with your order and provide you with further options where appropriate.
