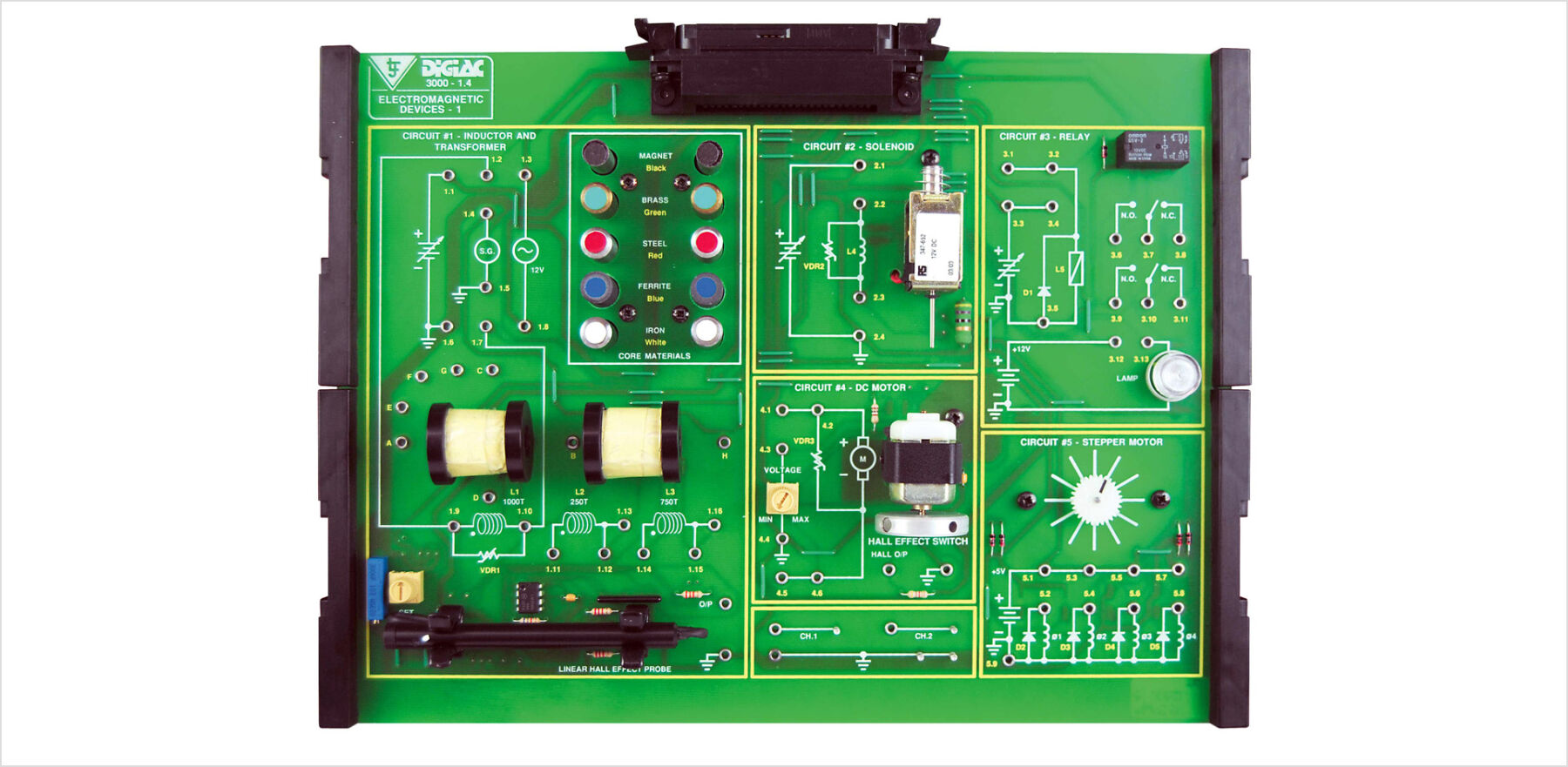

Electromagnetic Devices Study Module
This study module introduces students to the principles of magnetism and electromagnetism through a wide range of practical activities.
The Electromagnetic Devices Study Module (301-14) is supplied with PDF manuals that provide theory materials, practical tasks, faultfinding activities, and technical information.
Typical activities include:
- Assess the properties of magnetic core materials and the field strength around a magnet
- Use the Hall probe to determine the behavior of an electromagnet with different core materials and their
- relative permeability
- Determine the effect of core materials on coil inductance
- Investigate pull-in voltage for a solenoid
- Determine pull-in and drop-out voltage and current for a relay
- Diagnose faults in relay circuits
- Investigate the operation of a simple DC motor
- Determine the operation of full step and half step motors
- Faultfinding
Please Note: This resource requires access to an Advanced Electronics Experiment Platform (300-01).
How to order
Product:
Electromagnetic Devices Study Module
Code:
Please call LJ Create at
1-800-237-3482 or
email info@ljcreate.com.
A member of our staff will be happy to advise you with your order and provide you with further options where appropriate.
