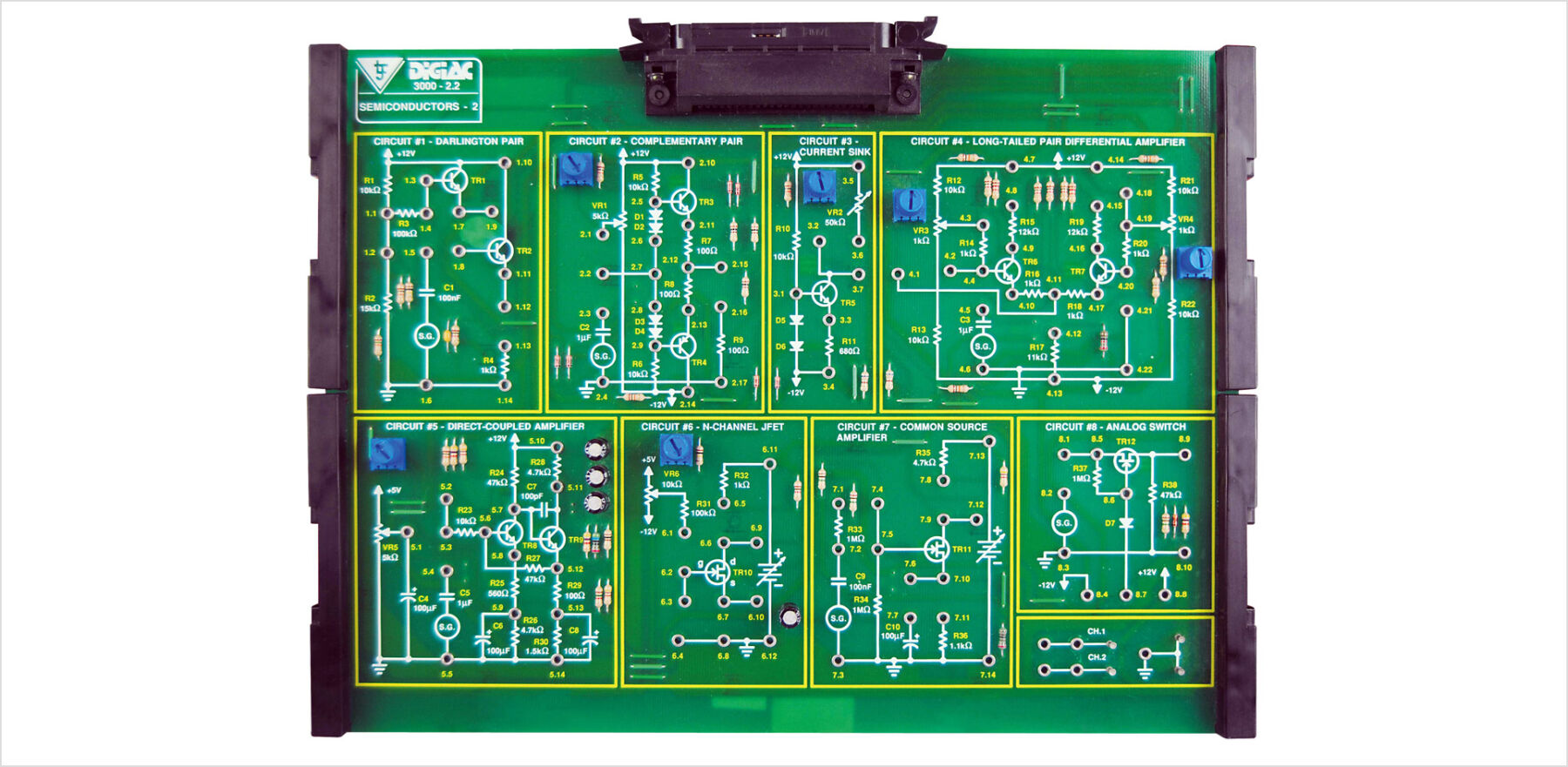

Semiconductors 2 Study Module
This study module extends the student knowledge of semiconductors by introducing further circuits based on bipolar junction transistors, and field effect transistors.
The Semiconductors 2 Study Module (302-22) is supplied with PDF manuals that provide theory materials, practical tasks, faultfinding activities, and technical information.
Typical activities include:
- Measure DC voltages and currents in a Darlington pair
- Measure voltages and determine the input impedance of a Darlington pair under AC conditions
- Identify cross-over distortion and methods of prevention
- Determine by calculation and measurement DC currents and voltages in a constant current sink circuit
- Measure DC amplifier performance under AC conditions
- Recognize significant features of a DC amplifier
- Obtain JFET parameters by measurement of voltages and currents in a JFET circuit
- Faultfinding semiconductor circuits
Please Note: This resource requires access to an Advanced Electronics Experiment Platform (300-01).
More Info
How to order
Product:
Semiconductors 2 Study Module
Code:
Please call LJ Create at
1-800-237-3482 or
email info@ljcreate.com.
A member of our staff will be happy to advise you with your order and provide you with further options where appropriate.
