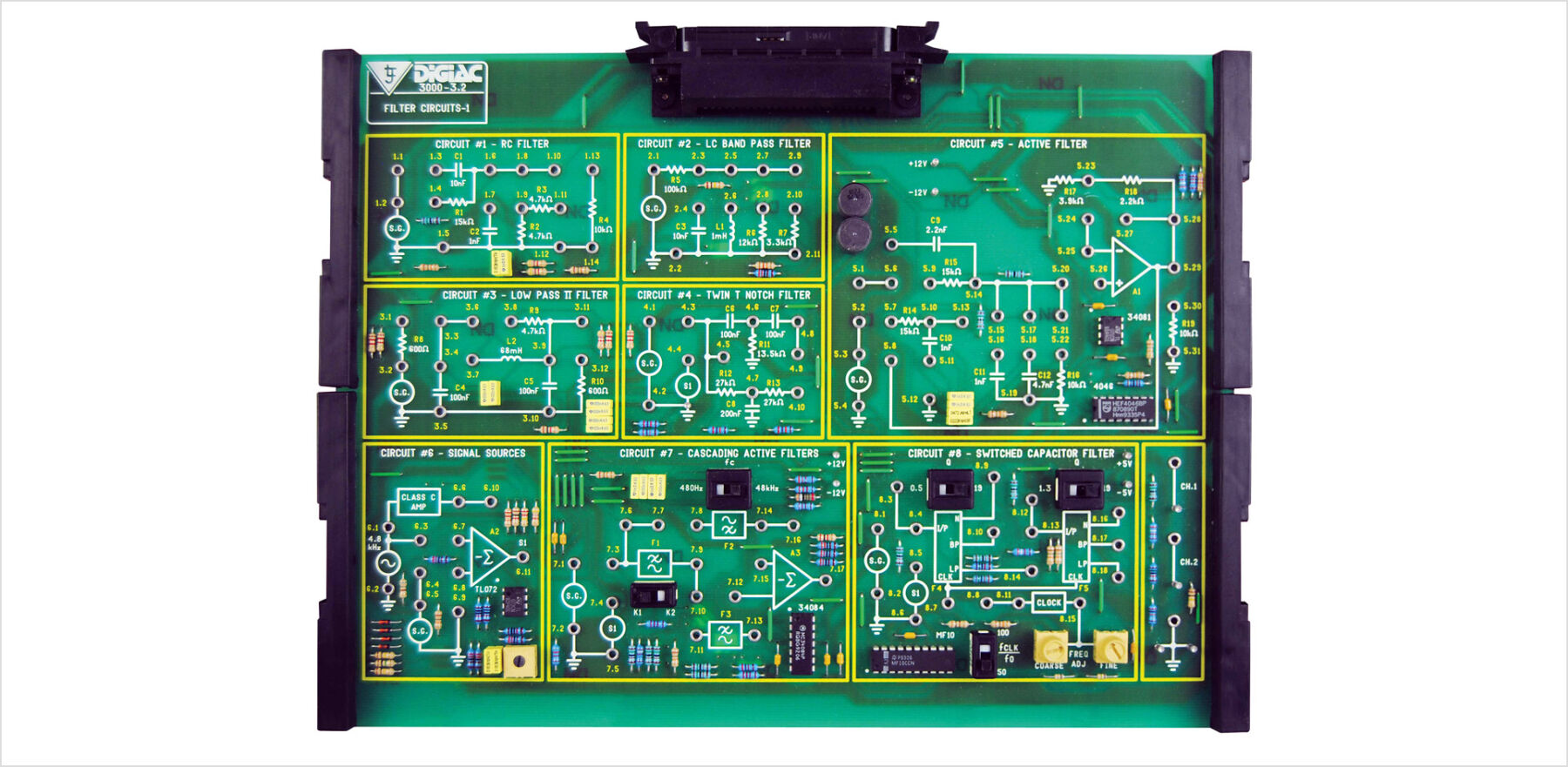

Filter Circuits Study Module
This study module introduces students to filter circuits and their applications through a wide range of practical activities.
The Filter Circuits Study Module (303-32) is supplied with PDF manuals that provide theory materials, practical tasks, faultfinding activities, and technical information.
Typical activities include:
- Identify advantages of using the logarithmic scale for amplitude and frequency
- Measure the cut-off frequency for high- and low-pass filters
- Determine from measurements the roll-off response for high- and low-pass filters
- Recognize the effect of a damping resistor
- Identify the low-pass and high-pass portions of a twin T filter
- Measure notch frequency and rejection
- Recognize the effect of loading passive RC circuits
- Diagnose faults in an active bandpass filter circuit
- Faultfinding filter circuits
Please Note: This resource requires access to an Advanced Electronics Experiment Platform (300-01).
More Info
How to order
Product:
Filter Circuits Study Module
Code:
Please call LJ Create at
1-800-237-3482 or
email info@ljcreate.com.
A member of our staff will be happy to advise you with your order and provide you with further options where appropriate.
